F300B Nozzle Pressure Distribution Module Didactic Equipment Vocational Training Equipment Fluid Lab Equipment

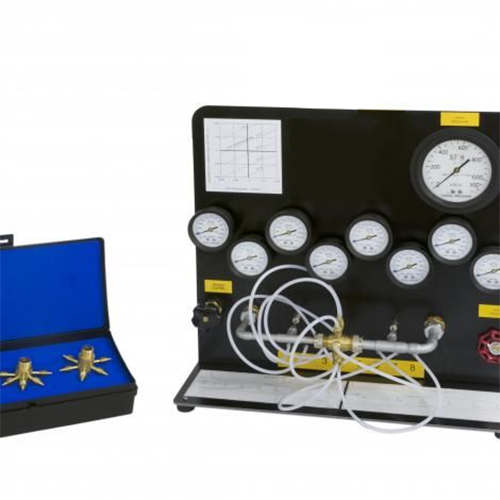

Description Two convergent-divergent nozzles of with the same throat diameter butdifferent discharge area and a single convergent nozzle having thesame diameter are supplied and fit in the common test section. All threenozzles have axial static pressure tapings allowing the approach, throatand divergent section pressures to be measured. The variation ofpressure ratio and mass flow may be investigated for all three nozzles. Standard unit includes convergent – divergent ducts designed toproduce Mach 1.0 at the throat and supersonic velocities downstream.Instrumentation on the Compressible Flow range F300 base unit andthe optional module allow all relevant temperatures, pressures and flowrates to be recorded. Features Three Nozzles 2 x Convergent-Divergent 1 x Convergent Technical Specification 1 x Back Pressure Gauge: 0…1100kN/m2 8 x Nozzle Pressure Gauge 2 x Thermocouples
