F300 Compressible Flow Range Didactic Equipment Vocational Training Equipment Fluid Lab Equipment

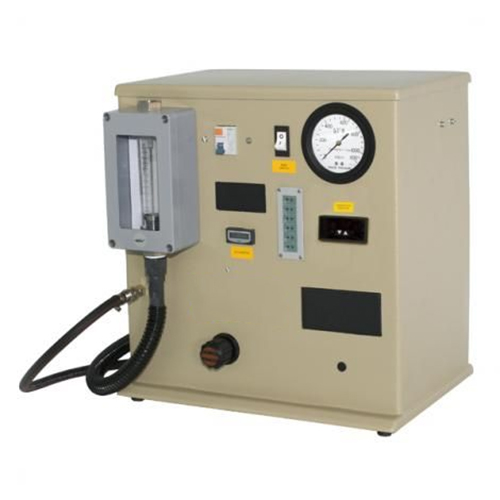

Description The phenomenon of compressible flow, sonic velocity and supersonicflow is possibly one of the most demanding areas of study for manystudents. The Compressible Flow range F300 and its collection ofoptional accessories enable students to safely and clearly investigatethe fundamentals of compressible flow, air turbines and a variety of heattransfer experiments. The F300 Base Unit consists of aninstrumentation and control console that supplies a variable flow ofcompressed air to the range of optional modules. The unit providescommon instrumentation for all of the options. Specialised instruments are included as required with the modules. Features Expandable Range of Economic Bench Top Equipment ThatEnables Student Investigation of Compressible Air Flow andAssociated Air Turbines. The Optional Modules allow detailed investigation of Sonic andSupersonic Flow In Nozzles, Jet Efficiency, Pressure Losses InPipes and a variety of Heat Transfer Experiments. Safe & Suitable for unsupervised student operation. Responds Immediately to system changes allowing efficient use oflaboratory time. Optional Computerised Data Acquisition system for Most Options. Negligible Operating and Maintenance Costs. Technical Specification Digital Temperature Indicator: 0.1°C Resolution Brake Load Indicator: 0.01N resolution Temperature Selector Switch Thermocouple sockets: Six Digital Tachometer Indicator: Return Air Flow meter: 0..12 g/s Gauge Pressure: 0…1100 kN/m2 Miniature Circuit Breaker (MCB) Residual Current Circuit Breaker (RCCB) Weights & Dimensions Weight: 17 kg Length: 440mm Width: 300mm Height: 440mm
