AFHT10XC Computer-Controlled Heat Transfer Teaching Equipment Didactic Equipment Vocational Training Equipment Thermal Lab Equipment

I.Product Overview
1.1 Overview

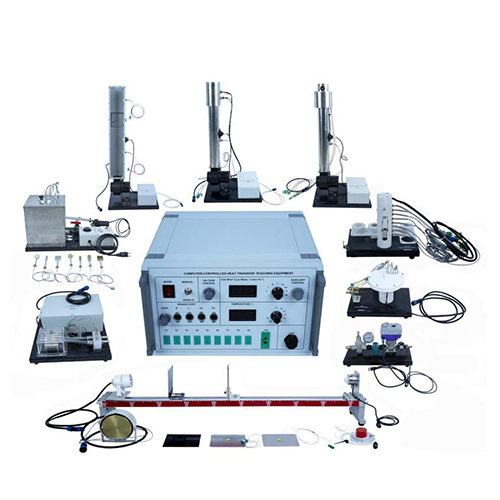

The AFHT10XC computer-controlled heat transfer teaching equipment is designed to help students understand and understand thermodynamic heat transfer and thermal radiation, demonstrate multiple heat transfer modes to students and study factors affecting heat transfer. The teaching equipment consists of an electrical control box and a series of thermodynamic experiment modules. The thermodynamics experiment modules include AFHT11C demonstrating linear heat conduction module, AFHT12C demonstrating radial heat transfer module, AFHT13 demonstrating radiation heat transfer module, AFHT14C demonstrating convection and radiation combined heat transfer module, AFHT16C demonstrating radiation error module that affects temperature measurement, and AFHT17 demonstrating unsteady state heat transfer. Thermal module, AFHT18 demonstration thermoelectric heat pump module and AFHT19 demonstration natural convection and forced convection module.
1.2 Features
(1) The AFHT10XC computer-controlled heat transfer teaching equipment is small in overall scale, plug-and-play, and fully functional, and can meet the requirements of experimental teaching.
(2) The AFHT10XC computer-controlled heat transfer teaching equipment adopts an integrated USB interface to facilitate communication.
(3) AFHT10XC computer-controlled heat transfer teaching equipment has high software compatibility
II.Performance Parameter
Input power: AC220V 50Hz
AFHT10XC electrical control box size: 400*410*260, weight: about 16kg
AFHT10XC water supply module size: 280*180*200, weight: about 6kg
AFHT11C research linear thermal module size: 380*190*230, weight: about 8kg
AFHT12C research radial thermal module size: 320*210*250, weight: about 7kg
AFHT13 research radiation heat transfer module size: 1300*200*250, weight: about 16kg
AFHT14C research convection and radiation combined heat transfer module size: 420*310*860, weight: about 19kg
AFHT16C studies the radiation error affecting temperature measurement. Module size: 420*310*860, weight: about 19kg
AFHT17 research unsteady heat transfer module size: 630*400*360, weight: about 26kg
AFHT18 thermoelectric heat pump module size: 420*370*160, weight: about 12kg
AFHT19 research natural convection and forced convection module size: 420*310*950, weight: about 24kg
Working conditions: ambient temperature -10℃～+40℃; relative humidity <85% (25℃)


III.Components List and Detailed Introduction
3.1 Electrical control box part
Number    Name
1    Power switch button
2    Toggle switch
3    Potentiometer
4    Multifunctional digital tube Display
5    Band switch
6    Potentiometer
7    Multifunctional digital tube display
8    Band switch
9    Type K thermocouple socket
10    USB interface
11    Type K thermocouple socket
12    Potentiometer
13    Aviation socket
3.2 Experimental module part
Number    Name
1    AFHT11C Research Linear Thermal Conductivity Module
2    AFHT12C Research Radial Thermal Module
3    AFHT13 Research Radiative Heat Transfer Module
4    AFHT14C Research Convection and Radiation Combined Heat Transfer Module
5    AFHT16C studies the radiation error module that affects temperature measurement
6    AFHT17 Research Unsteady Heat Transfer Module
7    AFHT18 thermoelectric heat pump module
8    AFHT19 studies natural convection and forced convection modules
3.3 Equipment configuration list
Number    Name    Quantity
Component 1    Electrical control box    1
Component 2    AFHT11C Demonstration Linear Thermal Module    1
Component 3    AFHT12C Demonstration Radial Thermal Module    1
Component 4    AFHT13 Demonstration Radiative Heat Transfer Module    1
Component 5    AFHT14C demonstrates combined convection and radiation heat transfer module    1
Component 6    AFHT16C Demonstrates Radiation Error Module Affecting Temperature Measurement    1
Component 7    AFHT17 Demonstration Unsteady State Heat Transfer Module    1
Component 8    AFHT18 Demonstration Thermoelectric Heat Pump Module    1
Component 9    AFHT19 demonstrates natural convection and forced convection modules    1
3.4 Accessories
Number    Name    Quantity
1    USB communication cable    1
2    Zigzag plug extension cord    1
3    Aviation plug extension cord    1
4    Power cable    1
5    Software CD    1
6    Clamp    9
7    Water pipe    6
IV.Experiment List
Experiment 1 Demonstrates linear thermal conduction experiment
Experiment 2 Demonstrates radial heat transfer experiment
Experiment 3 Demonstrates radiation heat transfer experiment
Experiment 4 Demonstrates the combined heat transfer experiment of convection and radiation
Experiment 5 Experiment to demonstrate the radiation error affecting temperature measurement
Experiment 6 Demonstrates unsteady heat transfer experiment
Experiment 7 Demonstration of thermoelectric heat pump experiment
Experiment 8 Demonstrates natural convection and forced convection experiments
