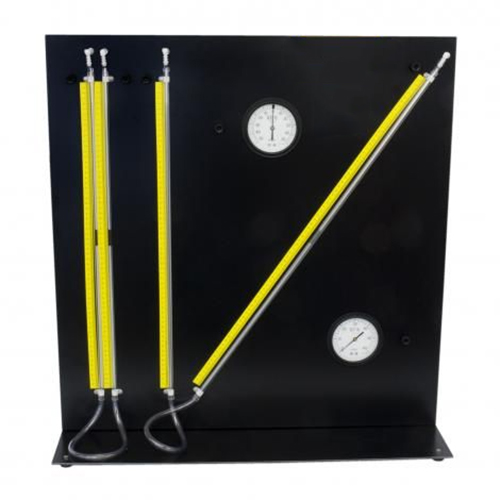

Description The F110 Pressure Measurement Bench allows students toinvestigate measurement of one of the fundamental parameters that willbe present in almost every branch of engineering and physics. A benchtop, panel mounted U tube and inclined tube manometer together with apositive pressure Bourdon tube pressure gauge and compound(positive and negative) pressure gauge. A means of creatingmeasureable pressures is also provided. The manometers allowinvestigation of the use of U and inclined tubes for pressuremeasurement and demonstrate the use of fluids of different density. Allof the manometers and the panel mounted pressure gauges may beinterconnected and linked to the common pressure source supplied. The action of the supplied pressure source may be reversed togenerate pressures below atmospheric pressure. This allows theconcept of “gauge” and absolute pressure to be investigated. Features ONE bench apparatus, FIVE pressure methods (U-tube, Inclinedtube, Positive bourdon, Compound bourdon, Fluid densities) Allows Investigation of Different Methods of Pressure Measurement. Introduces Students to Pressure Calibration Methods. Allows Investigation Above And Below Atmospheric Pressure. Optional Deadweight Tester with Optional Digital Readout. Investigation of manometer fluid density effect Technical Specification Compound Bourdon Tube: -50 to +50 mBar Bourdon Tube: 0 to +60 mBar Linear manometer scale: 1mm resolution Weights & Dimensions Unit: 770(L) x 380(W) x 800(H)mm Net Weight: 5 Kg
