F300E Fluidisation And Fluid Bed Heat Transfer Module Didactic Equipment Vocational Training Equipment Fluid Lab Equipment

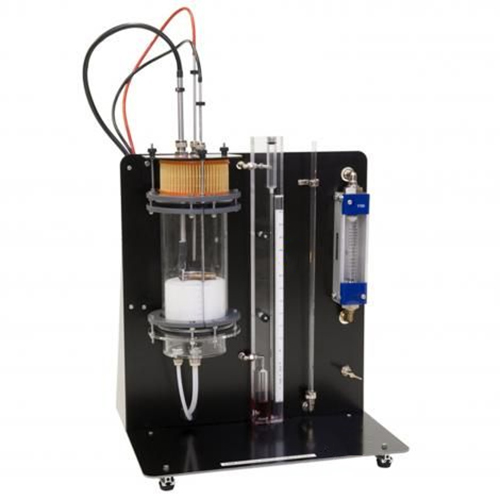

Description A glass cylindrical chamber with an air distribution plate at the bottomend allows the granular material supplied to be fluidised by a controlledand measured air flow. An adjustable cylindrical heater with surfacethermocouple and power meter can be immersed at any level in, or outof the bed to allow measurement of the local heat transfer coefficient. Amoveable pressure tapping and separate thermocouple allow thepressure and temperature within the bed at any depth to be measured.The pressures, temperatures and air flow rate are recorded by acombination of instrumentation on the Compressible Flow Range F300base unit and the optional module. Technical Specification 3 x Thermocouples Four grit size granules supplied Bed Chamber: Nominal Ø105mm x 220mm long
