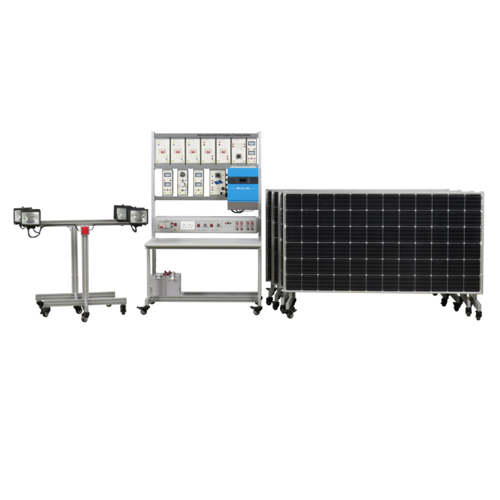

Stand Alone Solar PV System Training Station Didactic Equipment Vocational Training Equipment Renewable Training Equipment

AFR082 Stand Alone Solar PV System Training Station Didactic Equipment Vocational Training Equipment Renewable Training Equipment
1. Product Introduction
1.1 Product Description
This equipment is a multi-functional power experiment and testing platform, integrating multiple functional modules such as inverter, load, measurement, and control. It is suitable for power electronics experiments, new energy system testing, teaching demonstrations, and daily power testing. The equipment adopts a modular design, with each unit operating independently yet working collaboratively and efficiently, exhibiting stable and reliable performance. Users can flexibly combine modules and power supply units to complete diverse operations such as AC/DC circuit experiments, photovoltaic system simulation, and battery charge/discharge testing. The overall structure uses a European standard profile frame with casters for easy movement; the white desktop provides ample operating space, meeting ergonomic requirements, making it an ideal tool for laboratories, classrooms, and maintenance areas.
1.2 Product Features
Modular Design: Supports quick module replacement to meet different experimental needs, offering strong expandability.
High-Precision Measurement: Equipped with AC/DC voltage/ammeters, providing intuitive and reliable data.
Multiple Power Outputs: Provides 220V AC, 12V DC, photovoltaic simulation, and battery outputs, offering strong compatibility.
Safety Protection: Built-in fuses and grounding protection ensure safe operation.
Portable design: Features a European standard frame with omnidirectional wheels, allowing for flexible movement and maximizing desktop space utilization.
2. Technical Specifications
2.1 Basic Technical Parameters
Power Supply    Single-phase three-wire AC 220V 50Hz
2.2 Equipment Dimension
Equipment Dimension    1120mmX707mmX1811mm
Weight    100kg
Photovoltaic Panel Dimension (Single)    1955mmX805mmX1210mm
Weight    70kg
Simulated Light Source Dimension (Single)    1205mmX805mmX1063mm
Weight    5kg


3. Product Introduction
3.1 Main Product Components
No.    Name    Quantity
1    Photovoltaic Panel    4
2    Module Components    1
3    Power Supply Box Components    1
4    Simulated Light Source Components    2
3.2 Product Module Components
No.    Name    Quantity
1    Lamp Load Module    1
2    AC Circuit Breaker Module    3
3    DC Circuit Breaker Module    2
4    AC Meter Module    1
5    DC Meter Module    2
6    Battery Isolation Module    1
7    Integrated Control Module    1
3.3 Product Accessories
No.    Name    Quantity
1    4mm electrical safety connection cable (Dual Color)    11
2    4mm electrical safety connection cable (Black)    10
3    4mm electrical safety connection cable (Yellow)    10
4    4mm electrical safety connection cable (Blue)    10
5    4mm electrical safety connection cable (Red)    10
6    Five-core Analog Light Source Connection Cable    1
7    Four-core Analog Light Source Connection Cable    1
8    Fuse (5A)    5
9    Fuse (30A)    5
10    USB Flash Drive    1
11    USB Communication Cable    1
12    Charger    1
13    Digital Multimeter    1
14    Black Photovoltaic Panel Connection Cable    4
15    Red Photovoltaic Panel Connection Cable    4
4. Product Teaching Experiment List
(1) Photovoltaic Panel and Simulated Light Source Connection Experiment
(2) Solar Off-Grid Power Generation Experiment
(3) Inverter Load Experiment
(4) Photovoltaic Panel Open Circuit Voltage Test Experiment
(5) Photovoltaic Panel Short Circuit Current Test Experiment
(6) Photovoltaic Panel Power Measurement Experiment under Different Illumination Conditions
(7) Battery Charging Experiment
(8) Software Testing Experiment
