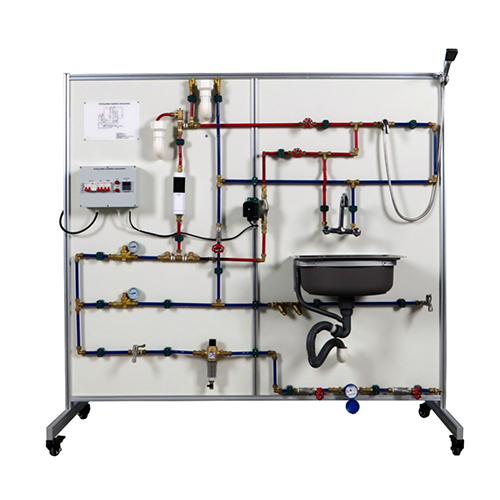

AFT126 Drinking Water Installation Demonstrator Didactic Equipment Vocational Education Equipment Thermal Lab Equipment

I.Product Overview
1.1 Overview
This household water system teaching device is designed for educational institutions, training institutions and home users. It aims to demonstrate the whole process of household water treatment and distribution in an intuitive and interactive way. The device integrates multiple modules such as supply and distribution, which can comprehensively and systematically teach the relevant knowledge of household water systems and improve students' practical ability.
1.2 Features
1. The product has a beautiful appearance and is marked in different colors, and the principle is clear and concise.
2. The equipment is built with an aluminum profile frame, and the panel is made of aluminum-plastic plate. All experimental devices are installed on the aluminum-plastic plate to facilitate experimental observation.
3. The electrical part is installed inside the waterproof box to ensure the safety and reliability of the experiment.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: AC220V.
Time relay parameters: AC220V; cycle control 0.1S-99H.
Temperature and pressure safety parameters: 90℃/0.6Mpa.
Pump parameters: Power 105W; Voltage AC220V; Flow 50L/min; Head 6m.
Heater parameters: 3500W.
Working environment conditions: Ambient temperature: 10℃～30℃ Relative humidity ＜ 75% (25℃).
2.2 Dimensions and Weight
Size: 2150mm*965mm*2170mm
Weight: <200kg


III.Components List and Detailed Introduction
3.1 Main Part
Number    Name
1    Inlet flow control valve
2    Water meter
3    Filter pressure regulator
4    Tap water faucet
5    Pressure reducing valve
6    Check valve
7    Heater
8    Water pump
9    Safety valve
10    Safety valve drain pipe inlet
11    Exhaust valve
12    Exhaust valve drain pipe inlet
13    Regulating gate valve
14    Single control mixing valve
15    Dual control mixing valve
16    Shower
17    Isolation valve
18    Water collection tank
19    Water collection tank drain pipe
20    Water collection tank drain pipe inlet
3.2 Electrical Parts
Number    Name
1    Main power circuit breaker
2    Heater circuit breaker
3    Water pump circuit breaker
4    Power indicator light
5    Water pump running indicator light
6    Time relay
IV. Product Configuration List
Number    Name    Quantity
1    Water pump    1
2    Angle seat valve    3
3    Gate valve    2
4    Heater    1
5    Single control mixing valve    1
6    Shower    1
7    Dual control mixing valve    1
8    Water collection tank    1
9    Tap water faucet    2
10    Filter pressure regulating valve    1
11    Pressure reducing valve    2
12    Water meter    1
13    Isolation valve    2
14    Check valve    2
15    Circuit breaker    3
16    Time relay    1
V.Experiment List
Experiment 1 Pipeline connection
Experiment 2 Use of water meter
Experiment 3 Use of simulated water heater
Experiment 4 Use of double-control mixing valve
Experiment 5 Use of single-control mixing valve
